Key Structural Design Features of Heavy-Duty Truck Radiators

Heavy-duty truck radiators are engineered to withstand extreme operating conditions, ensuring efficient engine cooling even under prolonged heavy loads. Their structural design differs significantly from standard vehicle radiators due to factors such as increased heat dissipation requirements, larger coolant capacity, and enhanced durability for rugged environments. Understanding these structural design features is essential for fleet managers, truck owners, and maintenance professionals to optimize performance and longevity.

This article explores the critical structural design aspects of heavy-duty truck radiators, highlighting the materials, core construction, cooling mechanisms, and innovations that contribute to their efficiency.

1. Core Structural Components of Heavy-Duty Truck Radiators

A heavy-duty truck radiator consists of several key parts that work together to maintain an optimal engine temperature:

1.1 Radiator Core

The radiator core is the central component responsible for heat dissipation. It comprises a network of tubes and fins that allow coolant to flow while air passes over them to disperse heat.

· Tube Design: Modern heavy-duty radiators use multi-row aluminum or copper tubes to increase heat transfer efficiency.

· Fin Configuration: Wavy or louvered fins improve airflow turbulence, enhancing cooling performance.

· Core Thickness: Heavy-duty radiators often have thicker cores to accommodate more coolant and increase thermal efficiency.

1.2 End Tanks

The end tanks store and distribute coolant within the radiator. These can be made from:

· Aluminum (more common in modern designs) – Lightweight and corrosion-resistant.

· Brass or plastic (in some older designs) – Durable but heavier.

1.3 Header Plates and Side Supports

· Header plates secure the tubes and provide a structural connection to the cooling fins.

· Side supports reinforce the radiator's frame to prevent deformation under high pressure.

1.4 Cooling Fans

· Mechanical fans (belt-driven) are common in heavy-duty trucks.

· Electric fans (thermostat-controlled) are used for improved efficiency and adaptive cooling.

2. Material Selection for Heavy-Duty Truck Radiators

2.1 Aluminum vs. Copper-Brass Construction

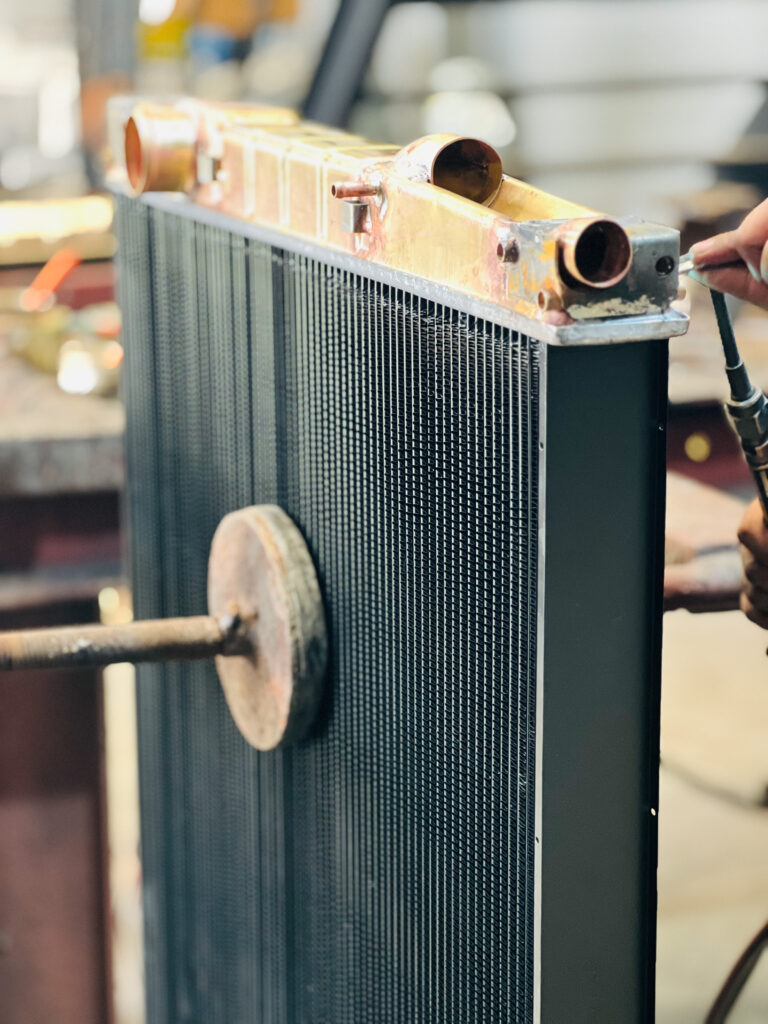

Modern heavy-duty radiators typically use aluminum due to its balance of durability, efficiency, and weight savings. However, copper-brass radiators are still found in heavy industrial applications where repairability is a priority.

2.2 Coatings and Corrosion Resistance

Radiators in heavy-duty trucks must withstand exposure to dirt, chemicals, and harsh weather conditions. Many manufacturers apply:

· Anti-corrosion coatings to prevent rust and deterioration.

· Powder-coated finishes for additional durability.

· Epoxy or polymer linings for added chemical resistance.

3. Cooling Efficiency Enhancements in Structural Design

3.1 Tube-and-Fin Innovations

Crossflow vs. Downflow Radiators

o Crossflow radiators have coolant flow horizontally, improving efficiency in modern heavy-duty trucks.

o Downflow radiators (older design) move coolant from top to bottom, often less efficient but still used in some applications.

Multi-Row Tubes: More rows allow higher cooling capacity, typically 2-5 rows in heavy-duty applications.

Dimpled Tubes: Create turbulence inside the tube, improving heat transfer rates.

3.2 High-Efficiency Fin Designs

· Louvered Fins: Direct airflow efficiently across the radiator surface.

· Dense Fin Spacing: Increases cooling but can clog easily in dusty environments.

3.3 Auxiliary Cooling Systems

Many heavy-duty trucks integrate secondary cooling systems, including:

· Charge air coolers (intercoolers) for turbocharged engines.

· Oil coolers to manage transmission and engine oil temperatures.

· Fan clutch systems that activate cooling fans based on temperature needs.

4. Structural Reinforcements for Durability

Heavy-duty trucks operate in extreme environments, requiring robust construction. Key reinforcements include:

4.1 Reinforced Core Supports

· Prevents vibration damage from rough terrain.

· Heavy-duty mounting brackets to secure the radiator in place.

4.2 Impact-Resistant Frames

· Steel or aluminum protective casing shields the radiator from debris and physical impacts.

· Some models have removable core guards for added protection.

4.3 Heat-Resistant Soldering and Brazing

· Brazed aluminum cores offer better thermal efficiency.

· High-temperature soldered joints prevent leaks under extreme heat conditions.

5. Advances in Heavy-Duty Radiator Technology

5.1 Smart Cooling Systems

· Electronically controlled thermostats optimize cooling efficiency.

· Adaptive fan speed systems adjust airflow based on engine load and temperature.

5.2 Lightweight Composite Radiators

· Hybrid aluminum-composite designs reduce weight without compromising durability.

5.3 Self-Cleaning Radiators

· Reverse air-flow technology minimizes dust buildup in off-road applications.

Conclusion

Heavy-duty truck radiators are specifically designed to handle extreme thermal loads, rough environments, and long operational hours. The choice of materials, core structure, cooling mechanisms, and reinforcements all contribute to their performance and durability. Whether selecting a crossflow aluminum radiator for highway trucks or a reinforced copper-brass unit for off-road dump trucks, understanding these structural features ensures optimal cooling efficiency and extended engine life.

FAQs

1. Why do heavy-duty truck radiators have multiple rows of tubes?
Multiple rows increase the radiator’s cooling capacity, allowing more coolant to circulate and dissipate heat more efficiently.

2. What is the best material for a heavy-duty truck radiator?
Aluminum is preferred for its lightweight, corrosion resistance, and cost-effectiveness, while copper-brass is ideal for high-heat and extreme durability applications.

3. How do louvered fins improve radiator performance?
Louvered fins create turbulence in airflow, which increases heat transfer efficiency and speeds up cooling.

4. What is the difference between a crossflow and downflow radiator?

· Crossflow radiators move coolant horizontally, improving cooling efficiency.

· Downflow radiators move coolant vertically, which is simpler but less efficient for heavy-duty applications.

5. How can I extend the lifespan of my heavy-duty truck radiator?
Regular coolant flushes, fin cleaning, leak inspections, and checking for corrosion can significantly extend radiator lifespan.
